Product Description:
At our company, we offer a range of innovative lighting solutions for various applications. One of our key features is the seamless daisy chain connection, which allows for easy installation and customization of lighting setups.
Our products also come with various lighting beam angles to suit different environments and preferences. Whether you need focused illumination or wider coverage, we have options to meet your requirements.
For enhanced versatility, our lights are designed to provide both up and down lighting, giving you the flexibility to create different lighting effects and ambiance in your space.
With our lighting solutions, you can enjoy the freedom to customize the length and shape of your lighting fixtures to fit your specific design needs. Whether you require standard lengths or unique configurations, we can accommodate your requests.
To ensure a comfortable and visually pleasing lighting experience, our products are engineered to achieve very low Unified Glare Rating (UGR) levels. You can choose between UGR<22 or UGR<19 options based on your specific lighting preferences and requirements.
Additionally, we offer standard length options as well as the possibility to customize the length of your lighting systems according to your project specifications. This allows for greater flexibility and ensures that our products seamlessly integrate into your unique design scheme.
Features:
The lighting product we offer boasts a variety of features to suit different lighting needs and preferences. It comes with four different beam angles to choose from: 30°, 60°, 90° and 120°. This allows for flexible lighting options in different settings and spaces.
The product also includes a dimmable feature which has a dual channel 0-10V option, as well as Dali 2 and Non-dim options for greater control over lighting brightness.
The wattage of the lighting can be adjusted with four options available to choose from, while the CCT of the lighting can also be tuned to four different settings.
The CRI of our lighting product comes in three options: CRI>80, CRI>90 and CRI>95. With these options, you can ensure the lighting produces the correct color accuracy and richness that meets your needs and requirements.
American Standard:
| Size | L(IN) | W(IN) | H(IN) |
| TLD-2FT | 23.75 | 1.3 | 2.4 |
| TLD-4FT | 43.75 | 1.3 | 2.4 |
Technical Parameters:
| Material | Aluminum + Acrylic/Iron + PS Lens |
| Beam Angle | 30°, 60°, 90°, 120° |
| Luminous Flux | 6250LM (Max) |
| Luminous Efficacy | 125LM/W (Max) |
| CRI | >80, >90, >95 |

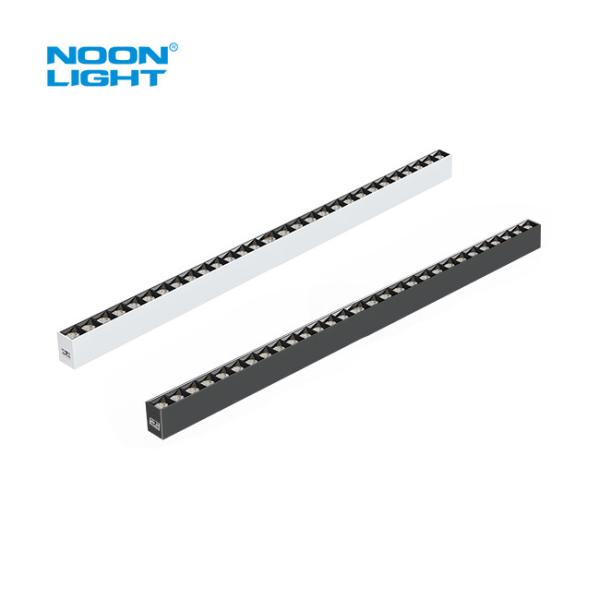

| Product Name | LED Trunking Lighting System |
| Warranty | 5 Years |
| Application | LED Trunking Lighting System |
| Input Voltage | 120-277VAC / 120-347VAC / 220-240VAC |
| Lifespan | 80,000hrs |
Accessories:
Emergency Pack
Specification
Input Voltage:100~277Vac/347Vac 50/60Hz , Input Current:100mA max.
Input Power Rating:7W max.
Output Voltage:25V~230Vdc
Emergency Power:30W max.
Recharge Time:24Hrs
Ni-MH: 41~149°F(5~65°C)
Weight:0.908 lbs(0.41kg)
Surge Protection:Line-Neutral 3KV
Applications:
Super market, office, commercial places, hospital, gym, warehouse, workshop, shopping mall
