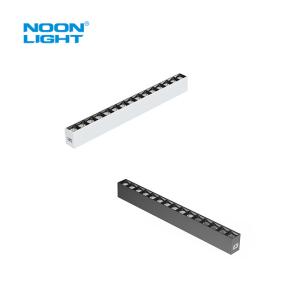

Product Description:
The installation process for this lighting system is very simple and versatile, with options for pendent, mounted, and recessed installation to fit your specific needs. Regardless of your installation preference, you'll be able to enjoy the benefits of a seamlessly daisy chained connection for easy use.
When it comes to lighting, every space is unique and requires a specific lighting beam angle. That's why we've designed our lighting system with various lighting beam angle options, ensuring that your space is illuminated with the appropriate lighting angle that suits your needs perfectly.
In addition to its sleek design and functionality, this lighting system also offers options for up & down lighting, giving you greater control over the ambiance of your space. The system can also be customized in terms of length and combined shapes, providing you with a lighting solution that uniquely fits your space's requirements.
Finally, our lighting system is designed with your comfort in mind. With a very low UGR<22 / UGR<19 for option, your lighting experience will be both bright and gentle on the eyes. Our system also offers both standard and customized length options to ensure you receive the perfect lighting setup for your space.
Features:
The product operates at voltage levels of 120~277VAC, 120~347VAC, and 220~240VAC. Additionally, the light efficacy levels are available at 125 Lm/W and 160 Lm/W for optimal performance. To control the beam angle, the options available are 30°, 60°, 90°, and 120°, providing flexibility in illumination.
The lighting system can be dimmed using either the 0-10V (dual channel), Dali 2, or Non-dim function according to your needs. Moreover, it is equipped with four wattage adjustable settings and four CCT tunnable settings, ensuring customized lighting to suit different environments.
With a CRI value greater than 80, 90, or 95, the illumination from the product is vivid and reflects the true color of the objects it illuminates. The fixture also comes with the option to install a motion sensor and/or an emergency battery pack for added safety and convenience.
Accessories:
Specifcation:
| Model No | Dimmable | Input Voltage | CRI | Wattage | LPW | Lumen | Beam Angle |
| N-TLD-2FT-25W-DF | 0-10V
0-10V Dual Channel
Dali2
Non-Dimmable | 120-277VAC
120-347VAC
220-240VAC | >80
>90
>95 | 25W | 160LM/W(Max) | 4000LM(Max) | 120° |
| N-TLD-2FT-25W-[30,60,90] | 25W | 125LM/W(Max) | 3125LM(Max) | 30°,60°,90° |
| N-TLD-3FT-36W-DF | 0-10V
0-10V Dual Channel
Dali2
Non-Dimmable | 120-277VAC
120-347VAC
220-240VAC | >80
>90
>95 | 36W | 160LM/W(Max) | 5760LM(Max) | 120° |
| N-TLD-3FT-36W-[30,60,90] | 36W | 125LM/W(Max) | 4500LM(Max) | 30°,60°,90° |
Accessories:
Wireless Fixture Controller With
Mesh Features
· Input Voltage: 12 - 24v Dc.
· Input Current: 20ma.
· 0~10v Dimming, Task Tuning (10-100%).
· Decentralized Control (No Single Point Of Failure)
· Super Compact, Flexible To Be Integrated Into Any Suitable Fixtures.
· Ip Rating: Ip20.
Applications:
Super market, office, commercial places, hospital, gym, warehouse, workshop, shopping mall
