Product Description:

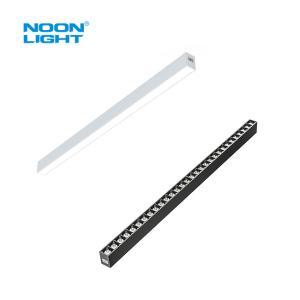

The LED trunking light system is a lighting solution that boasts a unique architectural design. Its aluminum housing ensures durability while giving it a sleek look. It can be easily installed through pendent, mounted, or recessed installation, making it a multifunctional and versatile option for lighting up any space.
Thanks to its seamless daisy chain connection, the LED trunking light system can be connected to other lighting fixtures with ease, creating a seamless and cohesive lighting experience. Moreover, it offers a very low UGR of less than 22, with an option for an even lower UGR of less than 19.
The LED trunking light system comes in standard length as well as customized length options to suit different needs. Whether you’re looking to light up a commercial or residential space, this system provides a flexible and stylish lighting solution.
Features of the LED Trunking Light System:
- Unique architectural design with aluminum housing
- Easy installation through pendent, mounted, or recessed methods
- Seamless daisy chain connection for effortless integration
- Very low UGR of less than 22 or an option for even lower UGR of less than 19
- Standard length or customized length available to fit specific requirements
ertifcate:
Features:
The input voltage for this product ranges from 120VAC to 277VAC, 120VAC to 347VAC, and 220VAC to 240VAC which makes it flexible for different regions and applications.
This product offers two options for light efficacy-125 Lm/W and 160 Lm/W depending on the desired brightness levels.
Additionally, it comes with various beam angle options- 30°,60°,90° and 120° that can be set based on the specific lighting needs of the space or setting.
With Dimmable options, this product provides greater control and flexibility to the user. It can be easily controlled using 0-10V (dual channel), Dali 2, and Non-Dim for a smooth and easy lighting experience.
The product is also compliant with various safety and quality certifications such as ETL, DLC, CE, and RoHS, ensuring it meets the highest standards and protocols for electrical safety and environmental protection.
Lastly, the product comes with a 5-year warranty, providing users with peace of mind and a long-lasting and durable lighting solution that won't let them down.
Specifcation:
| Model No | Dimmable | Input Voltage | CRI | Wattage | LPW | Lumen | Beam Angle |
| N-TLD-2FT-25W-DF | 0-10V
0-10V Dual Channel
Dali2
Non-Dimmable | 120-277VAC
120-347VAC
220-240VAC | >80
>90
>95 | 25W | 160LM/W(Max) | 4000LM(Max) | 120° |
| N-TLD-2FT-25W-[30,60,90] | 25W | 125LM/W(Max) | 3125LM(Max) | 30°,60°,90° |
| N-TLD-3FT-36W-DF | 0-10V
0-10V Dual Channel
Dali2
Non-Dimmable | 120-277VAC
120-347VAC
220-240VAC | >80
>90
>95 | 36W | 160LM/W(Max) | 5760LM(Max) | 120° |
| N-TLD-3FT-36W-[30,60,90] | 36W | 125LM/W(Max) | 4500LM(Max) | 30°,60°,90° |
Accessories:
Wireless Fixture Controller With
Mesh Features
· Ota Firmware Upgrade.
· Super Compact, Flexible To Be Integrated Into Any Suitable Fixtures.
· Operation Temperature: -10°C~+ 50°C. · Ota Firmware Upgrade.
· Individual/group Addressing
· Super Compact, Flexible To Be Integrated Into Any Suitable Fixtures.
· Operation Temperature: -10°C~+ 50°C.
· Rohs Compliant.
· Ip Rating: Ip20.
Applications:
Super market, office, commercial places, hospital, gym, warehouse, workshop, shopping mall
